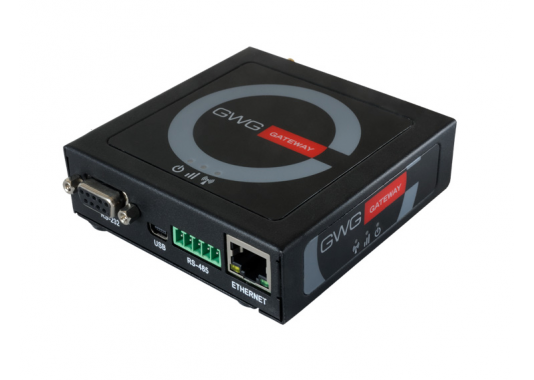

Geneko GWG gateway is compact and cost effective communications solution that provides cellular capabilities for fixed and mobile applications such as data acquisition, smart metering, remote monitoring and management. GWG supports a variety of radio bands options on 2G, 3G and 4G cellular technologies. It is reliable solution thanks to high performance hardware platform and VPN/Security powerful options. When coupled with the rich embedded intelligence, it is the perfect choice for a broad set of M2M solutions.
GWG comes with numerous connectivity options and multiple configuration methods. It allows you to connect your existing Ethernet and serial devices using basic configuration. Besides Ethernet, RS-232 and RS-485/RS-422 serial ports, the device is equipped with USB port as well as 3 configurable digital input/outputs available on GPIO Connector, and digital input/output and analog input available on power connector. Its small size and easy installation makes it suitable for challenging and size-constrained applications. GWG gateway can be used on either desktop or mounted on a DIN rail.
Features
- Compact, cost effective communication solution
- Cellular capabilities for M2M applications
- Support for remote Management and Monitoring
- Reliable, high performance solution
- Small-sized, convenient for easy installation and rapid deployment
- Multiple configuration methods, including web/serial console and Telnet
- Numerous connectivity options: Ethernet, RS-232, RS-485/RS-422, USB port, 3/3+1/1 Digital I/O, Analog input
| BEVIELĖS SAVYBĖS | |
| GSM/GPRS/EDGE | ✓ / ✓ / ✓ |
| UMTS/HSPA/LTE | ✓ / ✓ / ✓ |
| Perdavimo greitis | Down. 100 Mbit/s Upl. 50 Mbit/s |
| Ryšio galimybės | - / - / - |
| SIM kiekis | 1 |
| GPS | - |
| Antena | SMA jungtis |
| TINKLO SAVYBĖS | |
| VPN | IPsec, SSL, GRE VPN Client, OpenVPN, L2TP |
| Konfigūravimas ir diagnostika | Web/serial konsolė ir Telnet |
| Modbus | Modbus (ASCII, RTU, Variable) |
| SĄSAJOS | |
| I/O | |
| BENDRA | |
| Maitinimo įtampa | 9 - 36 VDC |
| Darbinė temperatūra | -20 iki +70 ºC |
| Išmatavimai | 101 x 88 x 30 |
